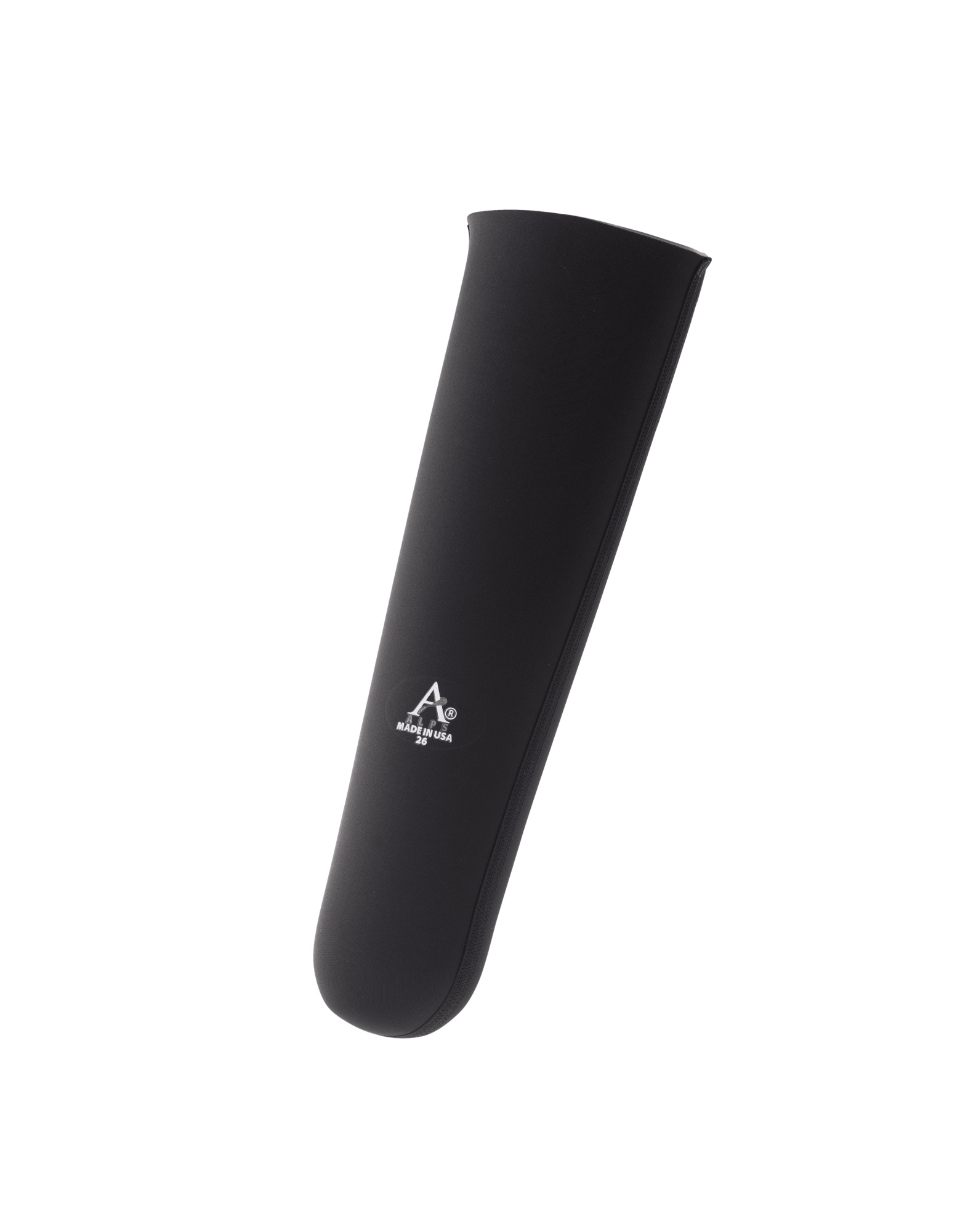

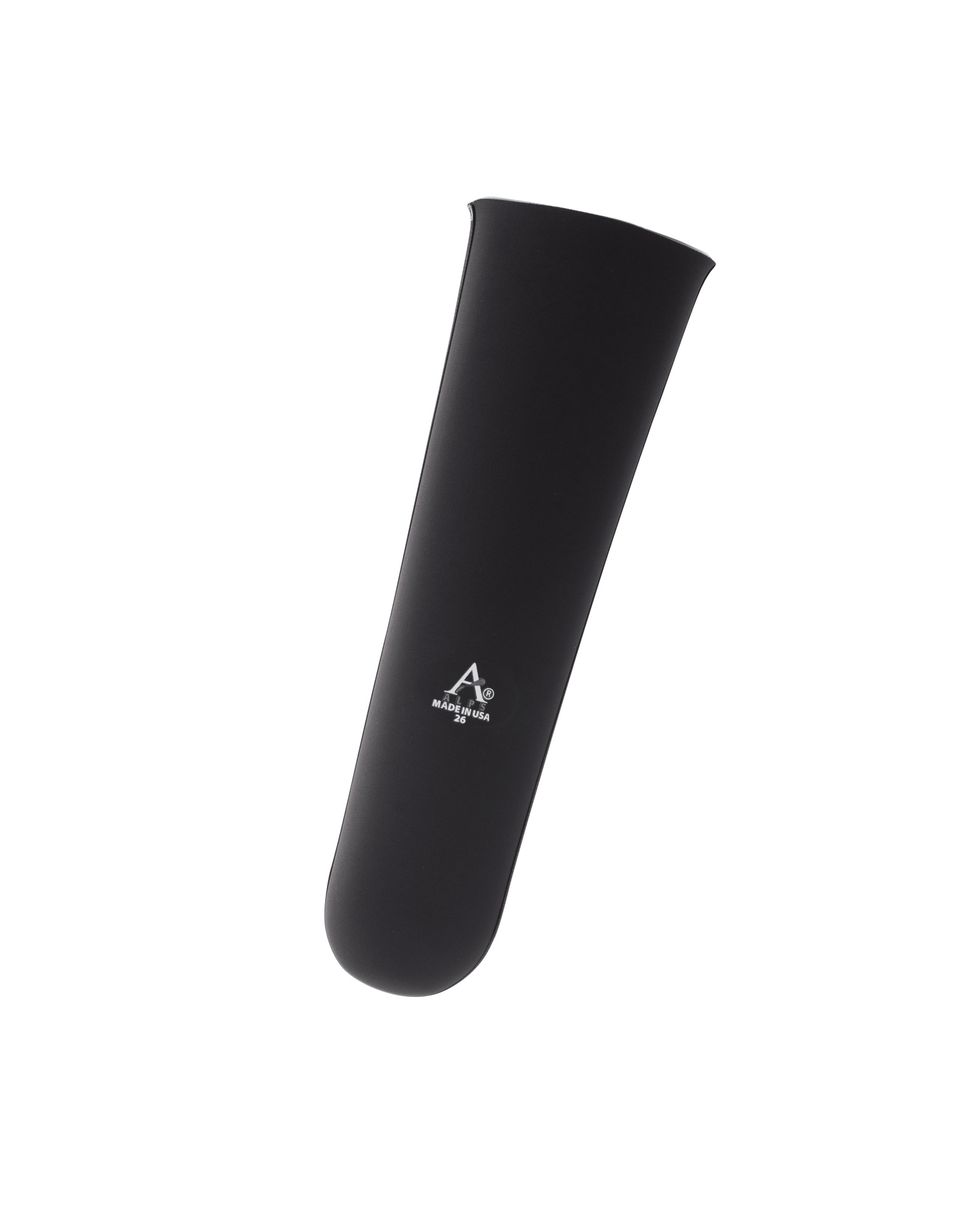

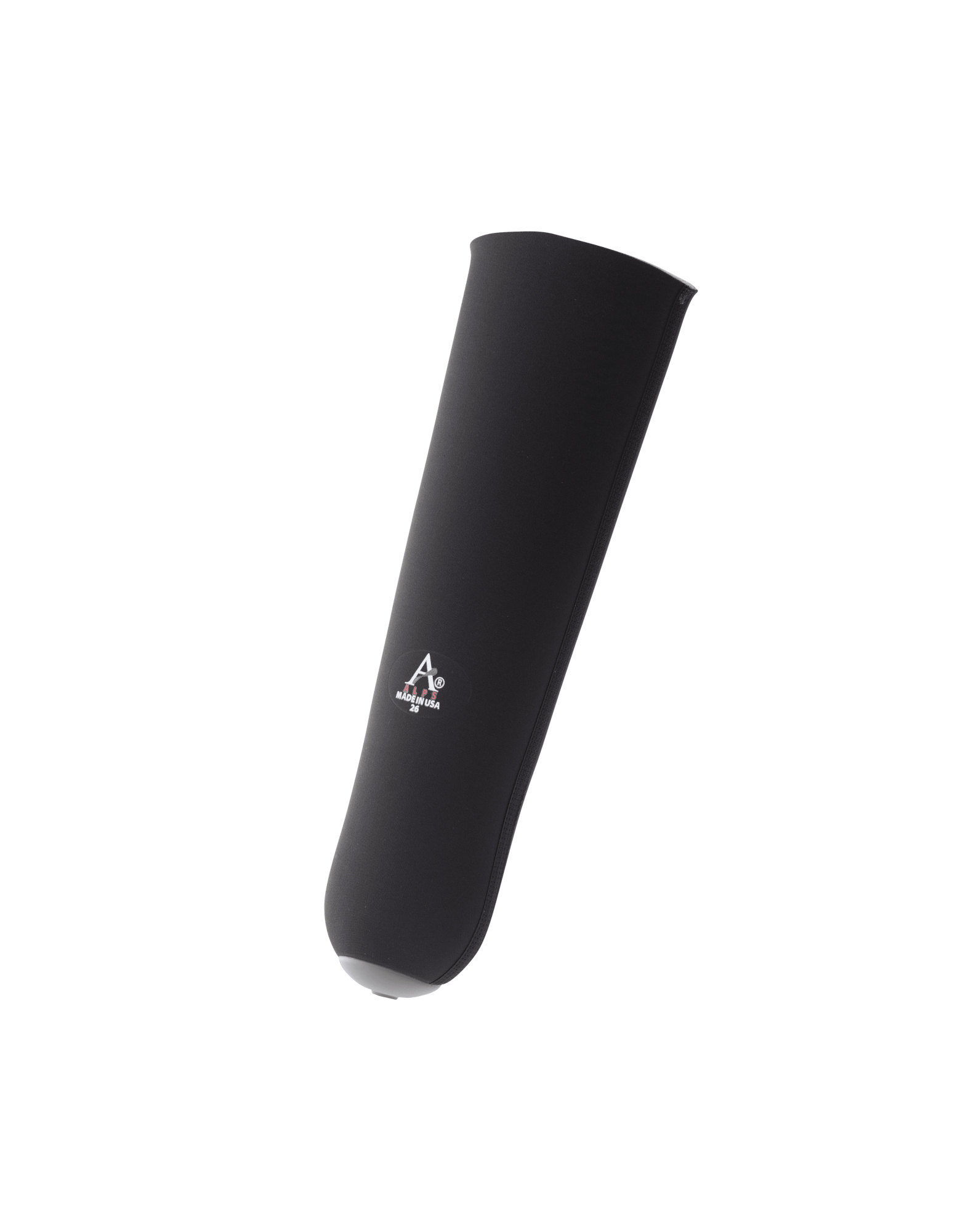

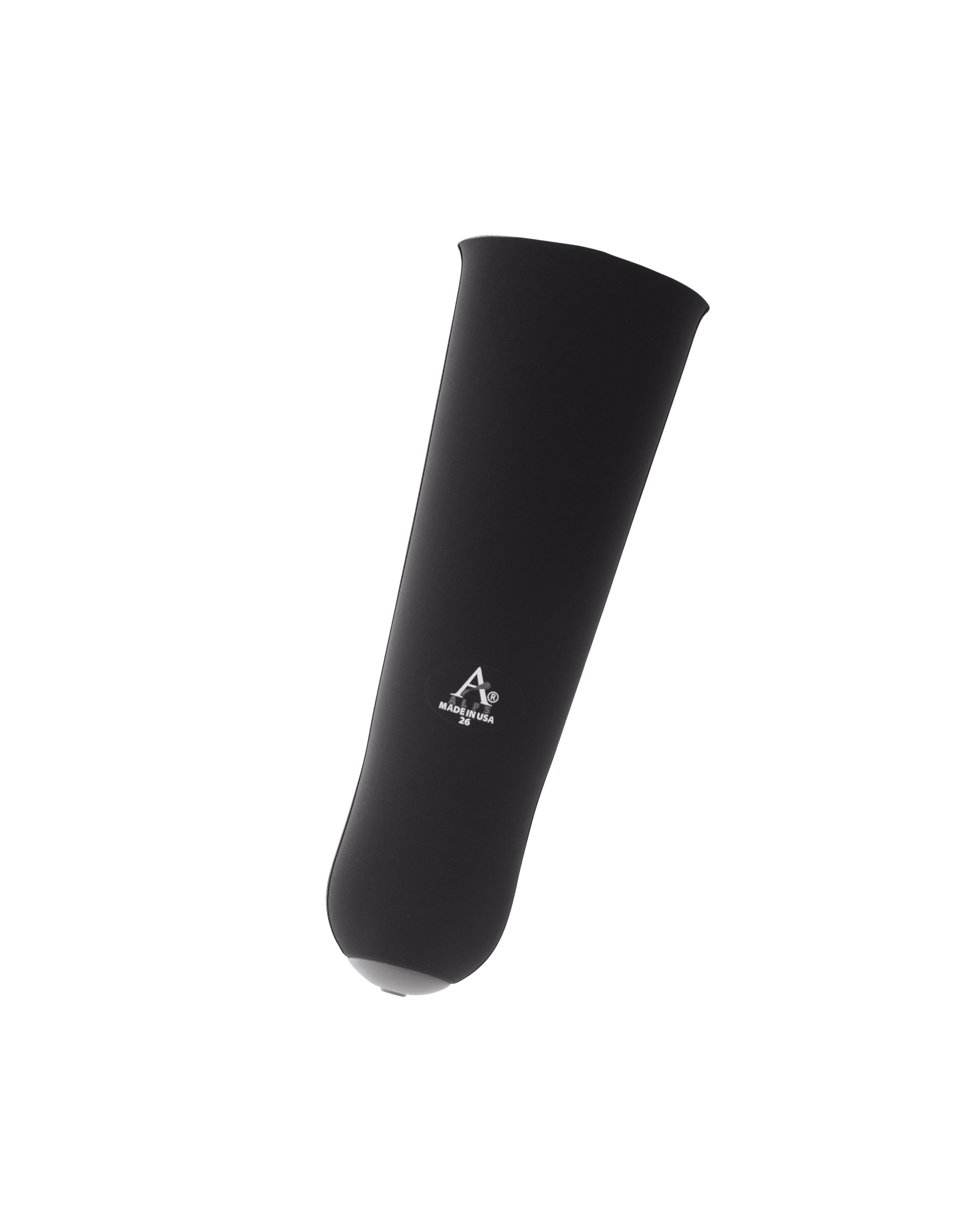

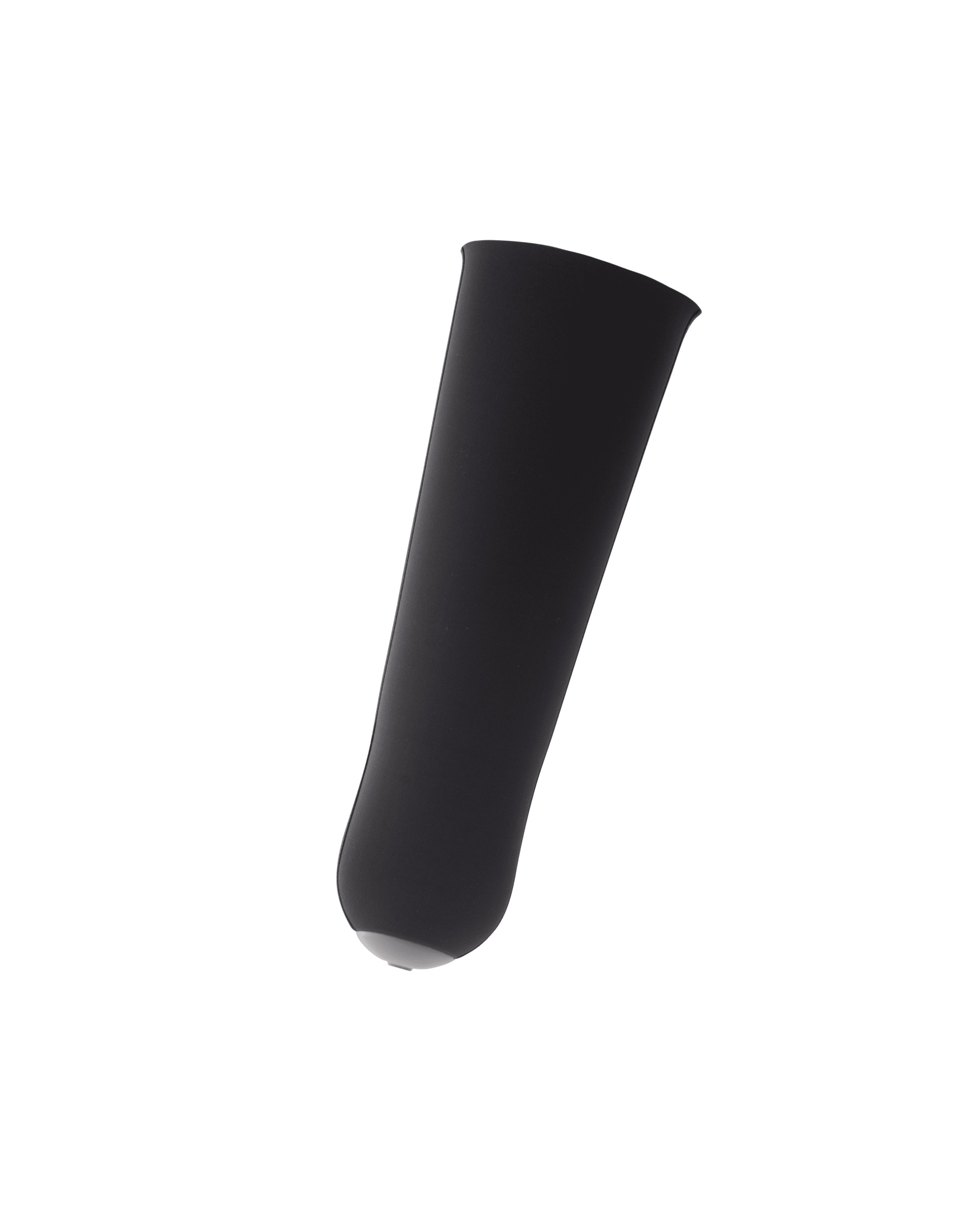

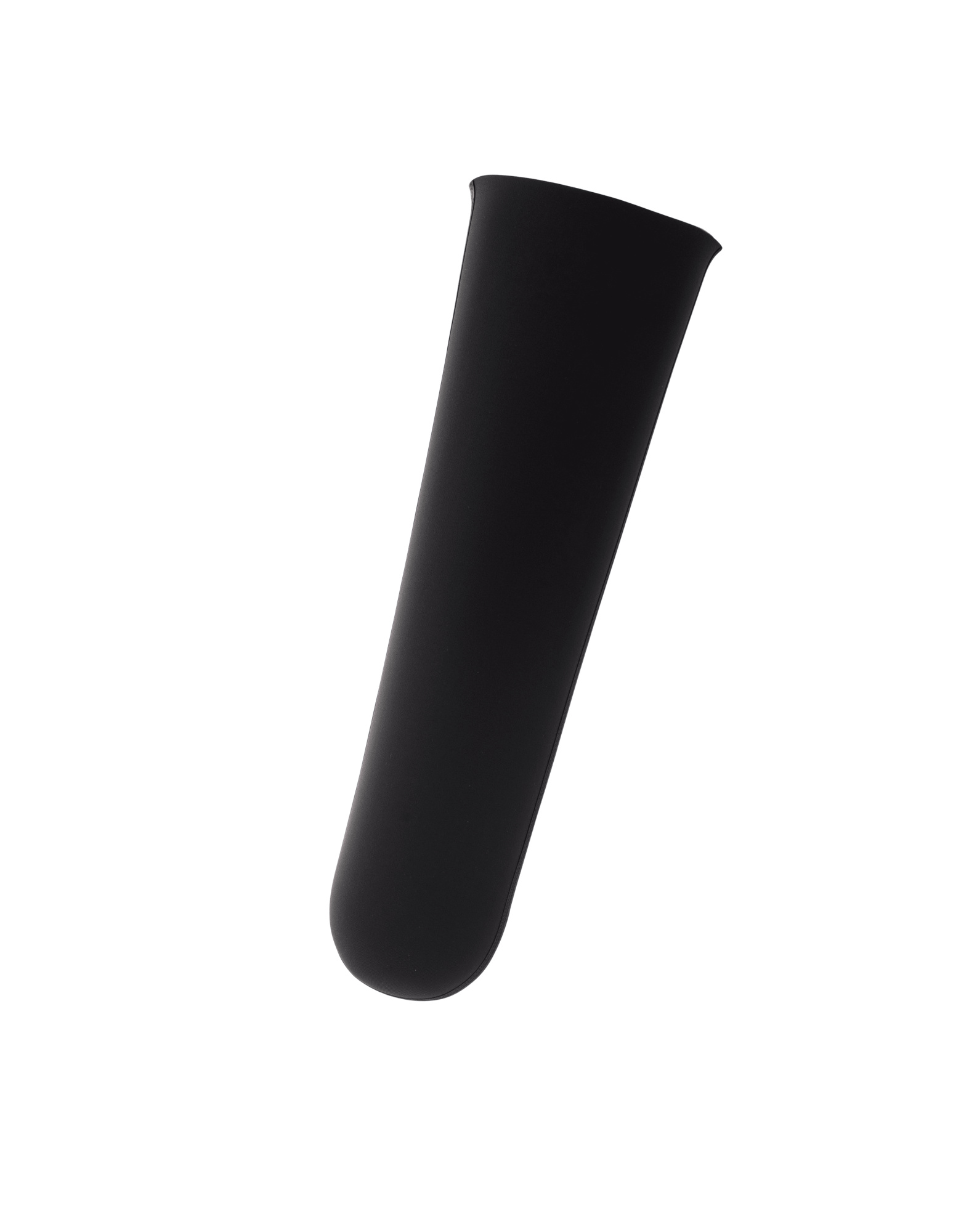

Alps Anterior Posterior Tapered Liner
Recommended for below-knee amputees with moderate to high activity levels who desire improved prosthetic control and freedom of movement without sacrificing comfort.
The Alps Anterior Posterior Tapered Liner tapers gradually from a thicker anterior portion to a thinner posterior portion, allowing freedom of movement for users with a lower leg amputation. The 6mm thick anterior portion provides a high level of protection for the bony areas. By combining High Density Gel with limited vertical tissue elasticity, this liner minimizes soft tissue movement and reduces the vertical oscillation effect, providing a high level of prosthetic control.
PECULIARITIES:
- Reduces the effect of vibration due to limited vertical elasticity of the tissue and the distal matrix (lock version)
- Protects the residual limb due to HD Gel's high ability to absorb vertical and shear forces
- Protects bone areas thanks to the 6 mm thickness of the front wall.
- Greater freedom of movement thanks to the 3 mm thick back wall.
- Minimises soft tissue movement and provides maximum control of the prosthetic leg by combining the properties of High Density Gel with limited vertical tissue elasticity.
You can find a more detailed diagram of the liner and instructions for choosing the size HERE

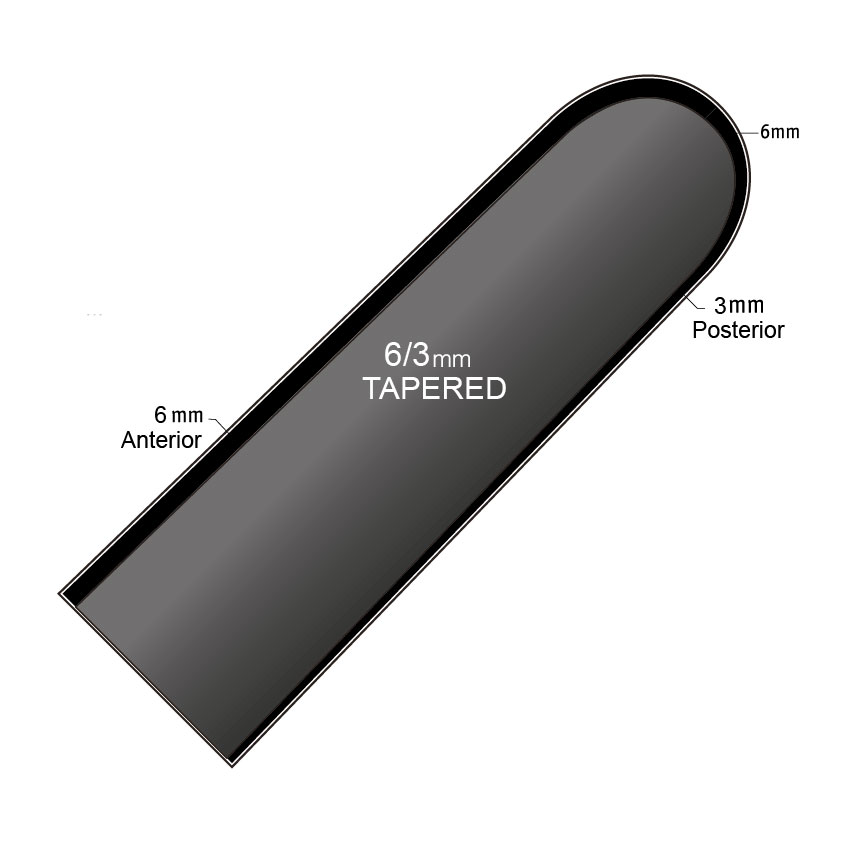

Lockless liner diagram

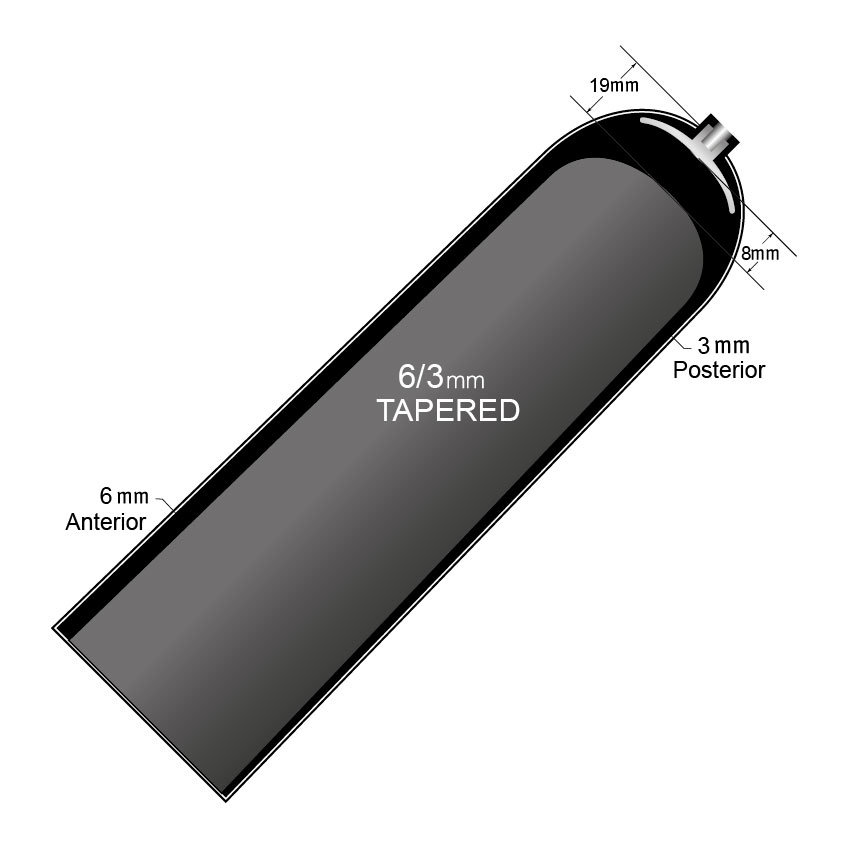

Lock liner diagram

Alps® is an American company specializing in the production of prosthetic liners since 1993. It has been known in the world market for many years with representative offices in 5 countries, a reliable network of agents and more than 160 distributors worldwide.
With a dedication to innovation and a commitment to understanding and even anticipating the needs of prosthetists and users, Alps® has grown far beyond the initial production of prosthetic liners alone to develop a range of high-quality prosthetic solutions, including over 75 registered patents covering a wide range of product categories.
As always, investments in innovation, research and quality, both in terms of products and working methods, are a priority for Alps®, allowing us to offer a premium solution.
Technical specifications:
- Activity level: 2-4
- Fastening type : lock/lockless
- Matrix shape : U-shaped
- Material: High Density Gel
- Fabric: with maximally reduced vertical elasticity.
- Thickness: gradually tapering from 6 to 3 mm.
Manufacturer: Alps, (USA)
